Land use/cover change analysis and its implication on livestock feed resource availabilities in southeastern rangeland of Ethiopia

Matiwos Habte^1,2, Mitiku Eshetu³, Abiyot Legesse⁴, Melesse Maryo⁵ and Dereje Andualem²

¹ Africa Center of Excellence for Climate Smart Agriculture and Biodiversity Conservation, Haramaya University, P.O.Box 138 Dire Dawa, Ethiopia
matiwosh@gmail.com   /   matiwosh@du.edu.et
² Department of Animal and Range Sciences, Dilla University, P O Box 419, Dilla, Ethiopia
³ School of Animal and Range Sciences, Haramaya University, P O Box 138, Dire Dawa, Ethiopia
⁴ Department of Geography and Environmental Studies, Dilla University, P O Box 419, Dilla, Ethiopia
⁵ Ethiopia Biodiversity Institute, Ethiopia

Abstract

The objective of this study was to analyze the combined effects of climate and land use/cover changes on livestock feed resources and livestock species composition. The land use/cover data were generated from Landsat images of 1986, 1995, 2010 and 2018. This study revealed transition of land use/cover from grassland, woody and forest vegetation cover to bush/shrub and cropland in the study areas. Over the last 32 years, potential grazing resources had been declined with a resultant increase in the proportion of bush/shrub feed resources available for livestock. The inter-annual variation of rainfall during the analysis period was 40.45%, which implies that the rangeland is in non-equilibrium dynamics. The rangelands carrying capacity was decreased (p<0.01) from 3.76 TLU/ha/year in 1986 to 1.74 TLU/ha/year in 2018. However, the stocking rate was increased from 1.8 TLU/ha/year in 1986 into 7.15 TLU/ha/year during 1986-2018. It is recommendable to choose camel and goat more likely than cattle and sheep raising with increasing temperature and decreasing pattern of rainfall that favour bush/shrub feed resources. Hence, available feed resources and the probability of choosing livestock species vary with eco-region and land use/cover that indicates the need for site-specific feed and rangeland management scheme.

Keyword: carrying capacity, climate, radimetric, tropical livestock

Introduction

Climate and land use/cover change have strong interconnection and the concurrent mutual influence on each other (Dale 1997; Fan et al 2015). According to Fahey et al (2017), land-use changes such as deforestation and soil cultivation changes the surface brightness. The positive radiative forcing (lower land surface albedo) can produce through the abandonment of pasture and forest cover. Research findings indicate that conversion of land use/cover to agriculture is a crucial driver of climate change. For instance, agricultural activities (crop with livestock) carried out in the field directly accounted for 13.5% of GHG emission. Whereas clearing forest for agriculture roughly accounted for an additional 17% of global GHG emission (Faurès et al 2013). Furthermore, conversions of pastureland/ native vegetation to cropland in semi-arid environments decreased soil organic carbon stock by 30% within five years of cultivations (Lipper 2017). Conversion of tropical forest to agriculture accounts for more than 60% of soil carbon loss (Eshetu and Hailu 2020).

Land use/cover changes are mainly caused by human activities including overgrazing, expansion of built-up, forest clearing and cultivation (Feddema et al 2005; Garedew 2009; Homewood et al 2001; IPCC 2019; Reid et al 2000). According to Benin (2003) and IPCC (2019), changes in land use/cover patterns and climate variabilities are primarily changing livestock feed resources in terms of composition, availability and quality. Under the dynamics of land use/cover changes and climate variability, the livelihood of pastoral communities is under threat (Elias 2008; Gebru 2007). Furthermore, Benin et al (2003) and Aklilu (2014) revealed declining patterns of grazing feed resources due to the combined effects of land use/cover and climate change. Moreover, Wolde-Georgis (2000); Hidosa and Guyo (2017); Husein (2018) reported that the quality and availability of natural pastures are considerably affected by continuous land use/cover and climate change. The supply of quality feed with the required quantity determines livestock productivity (Tolera 2012). In Ethiopia, livestock feed resources are mainly derived from foraging over large areas of grazing and browsing lands (Mengistu and Salami 2007; Tolera et al 2012). However, the contribution of free-ranging feed resources is subjected to the types and species of livestock reared (Rahman et al 2008).

The current growing concern of scientists is mainly focused on investigating how and to what extent climate and land use/cover changes are affecting livestock feed resources bases in pastoral regions (Nelson 2012; Oba 2012). Forage availability, pastoral herd mobility and herd composition are primarily affected by the current dynamics of climate and land use/cover changes. Land use/cover and climate change significantly vary across the agro-climatic condition, topography/altitude, and types of main livelihood and production system (Deressa 2007; Yesuph and Dagnew 2019; Žurovec and Vedeld 2019). According to Faurès et al (2013), climate impact mitigation and adaptation potentials depend on the agro-climatic condition and land use/cover types. Therefore, possible interventions could be provided depending on intensity and types of land use/cover and specific to particular environments (Dale 1997).

According to FAO (2015), livestock diversity, both species and genetic, is a source of resilience and facilitates adaptations in the face of environmental challenges. Species and genetic diversity are potentially required to cope up with the continual changes in climate, feed resources and newly emerging diseases. The adaptive capacity of livestock species to climate extremes and harsh environmental condition is likely to sustain the livelihoods of the producers. The livelihoods of the poor pastoral community depend on diverse livestock species, and hence the value of species diversity remains essential in the face of environmental challenges.

LLand use/cover change studies have extensively conducted concerning drivers of the change and drought vulnerability (Aklilu et al 2014; Meshesha 2012; Reid et al 2000). However, few studies dealt with livestock feed availability with land use/cover change (Aklilu et al 2014) and none have dealt with the availability of livestock feed resources with climate and land use/cover changes in the southeastern pastoral region of Ethiopia.

The interconnection of climate and land use/cover change with household perception on trends of livestock feed resources is less understood. The current trends of climate and land use/cover changes and its potential impacts on the availability of livestock feed resources, pastoral herd composition, grazing land, the viability of livestock production and livelihoods of pastoral communities have not yet investigated in a southeastern pastoral region of Ethiopia. Furthermore, integrating land use/cover and meteorological information with ground-based community perception could provide a complete picture of the combined effects of climate and land use/cover change on livestock feed availability and its driving factors on herd composition. Therefore, this study presents the combined effects of climate and land use/cover change on livestock feed resource availabilities and livestock species composition in east Guji zone of southeastern pastoral region of Ethiopia.

Material and methods

Description of the study area

East Guji zone is one of the zones in Oromia regional state and is the richest in livestock production in southeastern Ethiopia. Negelle Borana is the capital town of the Zone, which is located 610 km to the southeast of Addis Ababa. Three pastoral and agro-pastoral districts with the similar agro-ecological condition, namely Goro-Dola, Liban and Gumi-Eldallo, were selected for this study. The selected districts lie between 40 38' 55" and 50 33' 7" N latitude and 390 9' 25" and 390 58' 37" E longitude. The study locations cover about 742,644 ha. The districts are located at a lower altitude (1370 and 1560 m.a.s.l). Thus, the climatic condition of the study area is a mostly semi-arid condition with the bimodal rainy season. The average annual rainfall is about 527 mm, and the temperature ranges from 24 to 30 ℃ (Adi and Swoboda-Reinhold 2003; Aklilu et al 2014). The soil type of the rangelands in the study areas are mainly vertisols (Abate 2016; Dalle et al 2006).

Figure 1. Location map of the study area

Data collection

Land use/cover change analysis methods

Data sources and methods of data collection

Land use/cover change analysis was conducted using time-series satellite imageries downloaded from USGS web site (https:/glovis.usgs.gov/). Landsat images of 1986, 1995, 2010 and 2018 with 167 path and 056/057 rows were used to generate land use/cover. As the study is large in size, two adjacent Landsat images were downloaded for each period (Table 1).

Image analysis methods

The analysis was conducted in three different stages such as pre-processing, image classification and post-processing. In the pre-processing stage, the images were checked for their geometric and radiometric errors. As the images downloaded from USGS are already geo-referenced, there is no need to conduct geometric correction. With regard to radiometric errors, all the images were subjected to haze reduction and atmospheric correction. Once the images were checked for their geometric and radiometric errors, the adjacent images were mosaicked using ERDAS IMAGINE 14 software.

In the image classification stage, 24 sample-training areas were collected from each land use/cover type and used for training as well as accuracy assessment. Maximum likelihood classifier algorithm was used to classify the images. Accordingly, six different land use/cover classes such as agricultural land, bushland, forestland, woodland, grassland and settlement were generated.

In the third stage, the classified images were checked for accuracy using accuracy assessment technique. The training areas used for image classification were used to assess the accuracy of the classified images as well. Kappa coefficient was computed, and report about producer and user accuracy was generated.

Estimation of potential dry-matter production of different land-use type

Rangeland condition assessment was conducted at different years in the same study area, and the condition varies over time. Potential dry-matter supply of the rangeland during 1986, 1987-95 and 1996-2010 was estimated using Wroe (1988) based model. The model considers the range of precipitation and rangeland condition of the study area. Average annual precipitation of the study area falls within the range of 550-650 mm at all study period (1986, 1987-1995 and 1996-2010). Accordingly, excellent and fair rangeland condition was considered to determine the potential dry matter supply of grassland in 1986 and 1987-1995, respectively. At the same time, the average of good and excellent rangeland condition was used to estimate total pasture supply of grassland during 1986. The grassland forage supply of the study area for 2018 was estimated from the sample taken from two different enclosed Kalo (reserve grazing). About 37 sample plots were selected from two different sites and the grass was cut at the ground during the beginning of May (5-10) by throwing 1 m² quadrant to measure the total dry matter supply in the field. The clipped grasses were dried at room temperature over several days, and then dried sample weight was weighed using digital sensitive balance and recorded. Thus, the average value of dry-matter productivity from the whole plots was used to estimate the total dry matter supply of the grassland in the study area.

The total dry matter supply of bush or shrubland, woodland and dry forest were determined using a simplified simulation model of Timberlake and Reddy (1986). The model considers potential evapotranspiration (PET), annual rainfall and soil water retention capacity of the study area. Annual rainfall and temperature data were obtained from the national meteorological agency, Ethiopia. Potential evapotranspiration data was determined from the monthly average maximum and minimum temperature using DrinC software version 1.7 (91). About 233 mm of water retention capacity of the soil was used, since vertisols at a depth of 0-1.5 m can have 233 mm of water retention capacity in the lowland of Ethiopia (Virmani 1982). About 75% of utilization potential was considered since the woodland, shrub and dry forest flora of tropical Africa contain about 75% of browse species that can be potentially utilized by goat and camel (Wickens 1980).

Where

Ṝ is mean annual rainfall of previous years (mm)

µ is the standard deviation of mean annual rainfall

t_50+p is t-value at 50 + p per-cent probability level

R_p is expected annual rainfall at probability, p (mm)

is potential evapotranspiration

R´_p is effective annual rainfall at probability p (mm)

RO_p is annual runoff at probability p (mm)

AE_p is actual annual evapotranspiration at probability p (mm)

K isavailable water holding capacity at probability p (mm) = 233 mm

Determination of total forage supply of the rangeland

Where

TDM_p is potential dry-matter production of pasture (kg/ha/year)

AE_p is actual evapotranspiration (mm)

F is supper phosphate fertilizer level (for this study, F value = 0 since there is no fertilizer application in the rangeland of the study location).

Carrying capacity of grasslands

In this study, 30% of the potential utilization rate of grassland used as proposed by Cossins and Upton (1987) while 20% use rate of bush/shrub, woodland and the dry forest were adopted as recommended by Caltabiano (2006) for Mulga pastures in southern Ethiopian rangeland. About 75% of woodland, shrub/bush and dry forest flora of tropical Africa are palatable of browse species for the animal (Wickens 1980). Therefore, 0.75 palatability rate of woody, shrub/bush and forest vegetation cover was used.

The concept of tropical livestock unit (TLU) was used to compute the carrying capacity of the rangeland. The TLU was used to convert all livestock types into common denominator using the conversion factor of 0.7 for a cow in the herd, 0.1 for sheep, 0.08 for goat and 1.25 for a camel. An animal weighing 250 kg with 6.25kg of daily dry matter intake is considered as one tropical livestock unit (Houérou and Hoste 1977). Once the total forage supply and utilization rate of the rangeland estimated, the carrying capacity was determined. The information was presented as the maximum number of animal that the system can carry (TLU/ha/year) and areas required to graze/browse for specific herds (ha/TLU/years).

The stocking rate was also determined using a factor for grassland and 20% use factor for bush/shrub; woodland and forestland cover type, which indicates the total number of livestock on the feeding area for a specific period (TLU/ha/year).

Household survey

The pastoral and agro-pastoral people perception data were collected using semi-structured questionnaires regarding the interconnection of climate and land use/cover change on livestock feed availability and quality. The primary survey data were used to triangulate the respondent's perception with the interpretation of land use/cover and meteorological data. The interviewed household heads were selected using systematic random techniques, and the sample size was determined using the simplified formula provided by Yamane (1967) and Israel (1992) at a 95% confidence interval and 7% precision level (sampling error). From the total number of 2,441 livestock owner including camel, 198 household heads were selected for interview. The interviews were conducted in a face-to-face approach in the house of respondents, and some are interviewed at public meeting places or occasionally in other places. Furthermore, the available livestock feed resources were identified during the group discussion made with the selected pastoral; agro-pastoral and livestock feed experts of the study site

where n is sample size, N = total household of selected kebels, e = precesion level, z= 1.96 (at 95%).

where ni = assigned sample size of kebeles or wealth rank, n = Total sample size, Ni = Household size of single kebeles or single wealth group, N = Total household size

Data analysis

Livestock and potential rangeland productivity data were analyzed using SPSS version 20 and Microsoft Excel program Version 2016 to generate descriptive statistics. ERDAS2010 and Arc-GIS version 10 software's were used to analyze spatial land use/cover change data and map LULC. Potential evapotranspiration data was determined from the monthly average maximum and minimum temperature using DrinC software version 1.7 (91). Multinomial logit model (MNL) was used to analyze the survey data types of adaptation of livestock species and livestock species preference towards temperature, rainfall and feed availability. Trends of temperature, rainfall and livestock population data were analyzed by undertaking linear trend analysis. Mann-Kendall's test for trend significance was also used.

Results and discussion

Land use/cover change analysis (1986-2018)

Figure 2. Land use/cover change analysis (1986-2018)

The dominant land use/cover change during the entire analysis period of this study was bush/shrubland, followed by woody vegetation cover (Figure 2). During the analysis period, the area under crop coverage, bush/shrub cover and settlement showed positive changes. Between 1986 and 2018 expansion of settlement was exhibited, followed by crop and bush/shrubland expansion that has increased by about 287 and 7%, respectively. On the other hand, the area covered with woody, forest and grass vegetation has shown a decreasing trend over the entire study period with a declining rate of 18.3%, 41.9% and 22.5%, respectively. This change indicates crop residue and bush/shrub cover becoming the primary source of livestock feed as grassland, forest, and wooded vegetation cover had been declined over the study period.

Bush/shrub cover

Bush/shrubland (Figure 3) is mainly composed of species of Prosopis juliflora, Barleria spinisepala, Asepalum eriantherum, Commiphora africana,Commiphora schimperi, Harmsia sidoides, Cissus aphyllantha, Commelina africana,Grewia villosa, Aspilia mossambicensis, Acalypha fruticosa, Sansevieria ehrenbergii and several other species.

Bush/shrub cover is the dominant land use/cover types of the study area and showed steadily increasing trend from 1986 to 2018 (Table 2). Bush/shrubland cover increased from 38.2% in 1986 to 40.8% in 2018 with an increasing rate of 6.8%. Bush/shrub vegetation cover trend showed a more likely (p<0.01) change between 1995 and 2010 with a change rate of 0.35% per year. The increasing trends of bush/shrub vegetation cover could be associated with steadily declining patterns of grass, forest and woody vegetation cover (Figure 2). In agreement with the current finding Haile et al (2010); Smit (2004) and Coppock (1994) reported an increase of mixed bush and shrub vegetation cover that has not accessible for grazing livestock species. Bush/shrub plant encroachment is increasing with the resultant decrease in grassland cover in recent decades due to rangeland degradation in Borana plateau (Negasa et al 2014).

Photo 1. Bush/shrub land cover

Grassland

The grass cover in the study area showed a consistent declining trend throughout the study period. Its area decreased from 16.6% (114,530 ha) in 1986 to 13.1% (88.810 ha) in 2018. The decreasing trends of grass cover could be associated with an increasing trend of bush/shrub vegetation cover and cropland in the study location. In agreement to the current finding Coppock (1994) and Smit (2004) reported an increased rate of bush/shrub cover in response to heavy grazing in Borana rangeland of Ethiopia. Moreover, Haile et al (2010) revealed steadily declining patterns of grassland cover during the analysis period of 1967-2002. Similarly, Gessesse and Bewket (2014) & Aklilu et al (2014) reported consistently declining patterns of grassland during the analysis period of 1973-2007.

Grassland (Figure 4) is the primary feed source for grazer livestock species such as cattle and sheep in the study area. The declining patterns of grass cover could result in a severe animal feed shortage and affect livestock productivity. Thus, the expanding cultivable land could be a response to address a ruminant feed shortage problem in order to provide the required feed as crop residues for the animals. The relative increase in bush/bushland cover could be a response to increasing browsers livestock species such as camel and goat in order to secure the required feed demand of camel and goat. According to Rotherham (2013), most palatable and productive grass species has declined with prolonged overgrazing, and hence, decreaser grass species tend to dominate with increaser herbaceous and bush plant species. Similarly, Macharia and Ekaya (2005) reported that overutilization of grassland areas tends to encroached by bush and shrub vegetation, indicating decreaser grass species dominated with poorly palatable invader plant species and affects the productivity of grazing animal species.

Photo 2. Grassland cover

Forest and woody vegetation cover

The land covered with woody vegetation and forest showed a decreasing trend across the study period (Figure 2). The woodland cover is mainly contained several species of acacia, Lannea rivae, Dalbergia microphylla and species of commiphora. Woody vegetation decreased from 26% (175,211 ha) in 1986 to 21% (143,138 ha) in 2018. Similarly, forestland declined from 15% (100,457 ha) in 1986 to 9% (58,364 ha) in 2018.

The area under woody vegetation (Figure 6) and forest cover (Figure 5) has shown a negative change over the study period with an average annual decreasing rate of 0.57% for woodland and 1.31% for forest and differ ( p<0.01) throughout the study period. The land covered with forest was declined by 41.9% throughout the study period. It was shown that the annual loss and gain o forest cover in the country was estimated to be 92,000 and 19,000 ha/year, respectively and this indicates the high rate of deforestation as compared to reforestation/afforestation. The loss of forest resource in the study area are multiple and the underlying causes are population pressure and recurrent drought, which ultimately leads utilization of forests for construction, fuel wood and charcoal, and grazing land (EFCCC 2018). In addition overexploitation of forest and woodland resources, and expansion of invasive species (Friis 1992; Amogne 2014), weak legal enforcement of forest administration; feeble operative participation of communities in forest conservation and the benefit sharing, and unsuccessful effort to demarcating and enforcing the boundaries of natural forest reserves are among the factors contributing to the loss of forest resources in the area (Temesgen et al 2015).

More specifically, the major loss forest cover was observed between 1995 and 2018, while woody vegetation cover was profoundly changed between 1986 and1995. This change is principally attributed to the incidences of drought and famine which occurred country wide in Ethiopia between 1980s and 1990s (Robin et al 2009), which also caused the death of livestock. This change has forced the pastoral community to shift from pastoralism to selling of fire woods and charcoal to supplement their livelihood. Similar studies attested that pastoral communities have made a shift in livelihood from pastoralism to charcoaling driven by drought which occurred in 1980s (Haile et al 2010).

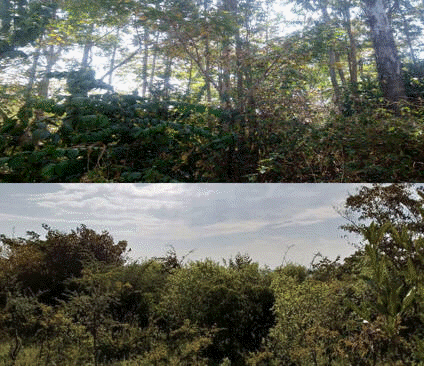

Photo 3. Forest cover

In agreement with this finding Aklilu et al (2014) reported decreasing patterns of forest cover over the study period of 2007-1973 at the same study location. However, Haile et al (2010) reveal that increasing patterns of woody vegetation cover between 1967 and 2002 in Borana zone under a similar agro-ecological condition with this study. Such variation could be due to the difference in spatial classification of LULC change types of the rangeland. However, wooded vegetation and forest cover were independently treated in the current study.

Photo 4. Wooded land cover

Cropland cover

The increasing patterns of cropland coverage (Figure 7) were detected over the analysis period in the study areas. Land covered with cultivable land was about 4% (28,018 ha) in 1986, 8% (53,895 ha) in 1995, 12% (78,902 ha) in 2010 and 16% (108,520 ha) in 2018. The cultivated cropland increased by 92.4% between 1995 and 1986, with an average annual change of 9.24%. At the same location, 37.5% of woody vegetation cover increase was recorded between 2010 and 2018, with an average change of 4.5% per year. The result of this study showed that there was 287% increase in cultivated land over the entire study period, giving an annual average change of 8.98%. In line with this finding Aklilu et al (2014) reported an increased cropland cover by 8.3% over the analysis period (1973-2007) at Liban district of southeastern parts of Ethiopia. According to Haile et al (2010), cultivable land was showed a rapid increase since 1987 in southern Ethiopian rangeland.

Photo 5. Agriculture (cultivated) land cover

Carrying capacity (CC) of rangeland

The rangeland productivity and carrying capacity were declined from 1986 to 1995 (Table 3 & 4). Decreasing patterns of feed availability were consistent with the perception of selected respondents. Reduced carrying capacity in the study area might be due to hydrological drought, which occurred in 1990, 1991, 1992, 2015 and 2016. The potential carrying capacity reported in this study might underestimate the actual carrying capacity of the study area because cropland cover is increasing that can supplement natural pastures but not included in this study.

The bush/shrubland cover remained the major feed resources of the rangeland in the study area during the analysis period (1986-2018) (Table 3). However, carrying capacity of bush/shrubland was showed decreasing pattern over the years. The potential carrying capacity of the bush/shrubland cover was decreased from 205,159 TLU in 1986 to 102,796 TLU in 2018. The maximum number of livestock that can browse in bush/shrubland for one year was about 27% (205,159 TLU) of the total carrying capacity of the rangeland in 1986 while about 44% (102,796 TLU) of the total carrying capacity of the rangeland during 2011-2018 (Table 3). The existing carrying capacity of bush/shrub cover in the study area, in general, where showed a declining pattern. However, bush/shrub cover remained the primary livestock feed resources and the livestock support service of the total rangeland carrying capacity of the study area.

The maximum number of animal that can feed/browse on woody and forest vegetation cover was about 38% (218,571 TLU/ha/year) of the total carrying capacity of the rangeland in 1986 but after that declined to about 35% (143,496 TLU/ha/year) and 32% (74,955 TLU/ha/year) during 1987-1995 and 2011-2018, respectively (Table 3). The woodland and forest vegetation cover is an alternative feed resource of browser livestock species (camel and goat) that can mainly supplement grassland. The woody vegetation cover was the third valuable livestock holding capacity in 1986 (about 24%) and during 1987-1995, which was about 24 and 21% of the total carrying capacity of the rangeland, respectively. However, it was the second-largest stocking capacity of the total rangeland carrying capacity during the analysis period of 1995-2010 (29%). According to Giday et al (2018), the maximum number of livestock that can be raised on Desa'a forestland cover was about 68,480 TLU/year in northern Ethiopia, which was higher than the forest carrying capacity value of the 2011-2018 and comparable with the value of 1986-2011 in this study. This variation might be due to decreasing trends of forestland cover in the eco-environments of this study.

Of the total carrying capacity of the rangeland in the study area, the grassland cover stock holding capacity was declined from about 158,483 TLU/year in 1986 to 55,181 TLU/year during the analysis period of 2011-2018 (Table 3). This study showed a decreasing rate of 23.9% between 1995 and 1986, 24.9% between 2010 and 1995, and 34.8% between 2018 and 2010. The grazing capacity of grassland was declined by 65.2% between 2018 and 1986 with an annual decreasing rate of 2.04%.

The average value of bush/shrubland carrying capacity is about 0.8 TLU/ha/year in 1986 and 0.4 TLU/ha/year during 2011-2018. The bush/shrubland carrying capacity value of 1986 is higher than the report of Pratt and Gwynne (1977). These authors reported 0.2 TLU/ha/year for east Africa under the same climatic condition, and it is comparable with the result of 2011-2018 of this study. The average value of bush/shrubland carrying capacity during 1987-1995 of this study is in agreement with the report of Mugerwa (1992) who reported 1.63 ha/TLU grazing/browsing capacity. However, carrying capacity of bush/shrubland from 1996 to 2010 was relatively lower than the finding of Byenkya (2004) who reported 2.27 ha/TLU, and it is comparable with this finding value of 2011-2018 (2.7 ha/TLU).

The potential carrying capacity of woody and forestland cover was declined from 1.58 TLU/ha/year in 1986 to 0.74 TLU/ha/year during 2011-2018 (Table 4). The average carrying capacity of wooded and forestland cover during 1986-2010 in this study was comparable with the finding of Hocking and Mattick (1993) who reported 2.5-3.5 ha/TLU in woody vegetation cover of Tanzania. The reason for the declined carrying capacity of woody and forest vegetation cover could be attributed to decreased biomass production that might be as a result of relatively decreasing patterns of rainfall, increased rate of temperature and solar radiation.

The average carrying capacity of grassland in the study area was decreased from 1.38 TLU/ha (0.72 ha/TLU) to 0.62 TLU/ha (1.62 ha/TLU) during 2011-2018 (Table 4). Such a decreasing rate may be due to declining trends of rangeland condition and rainfall patterns of the study area. Increasing patterns of drought years, solar radiation and temperature pattern could be the major factors for depleting grassland productivity. The carrying capacity value of 2011-2018 in this study was agreed with the finding of Meshesha et al (2019) who reported 4.9 ha/TLU/year of grassland under the similar microclimatic condition. However, the carrying capacity value of grassland in 1986 was much higher than the report of Pratt and Gwynne (1977) who revealed 0.2 TLU/ha under similar ecological condition. The grassland carrying capacity of the study area during 1987-1995 was relatively higher than Mugerwa (1992) report of 1.63 ha/TLU/year for rangelands of Uganda. Similarly, Byenkya (2004) reported 2.27 ha/TLU grazing capacity of southwestern Uganda, which is higher than the carrying capacity value of 1996-2010 of this study. Therefore, the grassland productivity and carrying capacity of the current finding indicate that the grassland is relatively a good condition.

The decreasing trends of grassland carrying capacity could be due to declining rangeland condition in the study area. Similarly, Angassa and Baars (2000) reported good rangeland condition based on the data collected in 1998. In contrast, Dalle et al (2006) reported fair rangeland condition from a similar study location to the current study.

Stocking rate

The overall stocking rate of the rangeland shows an increasing pattern in the study area (Table 5). The general stocking rate was 1.8 TLU/ha in 1986, which is much lower than the carrying capacity value of the same year (3.76 TLU/ha/year). Whereas, the total stocking rate of the rangeland during 1987-1995 was consistent with the estimated carrying capacity (2.79 TLU/ha) of the same analysis period. However, the general stocking rate of the rangeland was about 5 TLU/ha/year and 7.2 TLU/ha/year during 1996-2010 and 2011-2018, respectively and it is much higher than the carrying capacity of the rangeland (Table 4).

The existing browser livestock species-stocking rate of bush/shrubland of the study area was 0.77 TLU/ha/year in 1986, 2.63 TLU/ha/year during 1987-1995, 7.28 TLU/ha/year 1996-2010 and 9.38 TLU/ha/year during 2011-2018. The current stocking rate in this study relatively comparable with carrying capacity in 1986 (0.79 TLU/ha) and much higher than its carrying capacity during 1987-1995 (0.56 TLU/ha), 1996-2010 (0.64 TLU/ha) and 2011-2018 (0.37 TLU/ha).

The estimated stocking rate of the grass vegetation cover was 5.12 TLU/ha in 1986 and 11.8 TLU/ha during 2011-2018 based on grazer livestock species while 5.99 TLU/ha in 1986 and 26.4 TLU/ha in 2018 based on the total livestock population in the study area. Thus, the grassland stocking rate was much higher than its carrying capacity throughout the analysis period (1.38, 1.11, 0.83 and 0.62 TLU/ha in 1986, 1995, 2010 and 2018, respectively). The grassland-stocking rate in this study showed a consistently increasing pattern throughout the analysis period, with the average increasing rate of 10.6% per year (Table 5). The stocking rate of grass vegetation cover was augmented by 52.1% between 1986 and 1995, with an average change of 5.21% per year. Moreover, grassland stocking was increased by 54.3% between 2018 and 2010 with an annual change of 6.8%. The stocking rate observed in this study during the analysis period of 2011-2018 was much higher than the finding of Meshesha et al (2019) who revealed 5.4 TLU/ha/year for grassland cover of similar ecological condition with the site of this study. This variation could be associated with an existing livestock population that can graze in the current study area.

The current stocking rate of woody vegetation and forest cover showed a consistently increasing trend throughout the study period (Table 5). The stocking rate in the forest and woody vegetation cover was about 3.12 TLU/ha for browser livestock species in 1986 while it was increased to 62.5 TLU/ha during 2011-2018. The woody vegetation and forest cover stocking rate in this study is much higher than its carrying capacity (Table 4 and 5). There was major change in stocking rate of woody vegetation and forest cover with a 59.5% increase per year for browser livestock species. The stocking rate of woodland and forest cover pattern was increased by about 2.6 folds (259%) between 1995 and 1986, giving an average change of 26% per year. The stocking rate of forest and woody vegetation cover was increased by 51% between 2018 and 2010, giving an average increasing pattern of 5.7% per year. Moreover, the stocking rate for browser livestock species was increased by 19 folds (1904%) between 2018 and 1986, giving an average change pattern of 59.5% per year. This decreasing may be due to the declining pattern of rangeland productivity and increasing trends of browser livestock population in the study area.

Sustainability of grazing/browsing of the rangeland in the study area

The relative contribution of grassland was enormous in the past and showed decreasing pattern from year to years with a resultant increase in invasive unpalatable woody vegetation that could be mainly available for browser livestock species such as camel and goat. The contributions of feed resources from grassland, woody and forest vegetation cover has shown decreasing pattern. Conversely, the area covered with bush/shrub and cultivated cropland was increasing throughout the analysis period. This difference might be due to variability and erratic nature of rainfall, decreasing rate of relative humidity and positive change in temperature of the study area throughout the study period.

Figure 3. Rainfall anomaly index throughout the analysis period (1986-2018)

The meteorological data from 1986 to 2018 indicates that there is no variation (p<0.05) among annual rainfall. However, 13 drought years (1988, 1991, 1992, 1998, 1999, 2000, 2007, 2009, 2010, 2012, 2015, 2016 and 2017) were identified using rainfall anomaly index (Figure 8). The calculated mean annual rainfall and CV value, excluding drought years were 694.4 mm and 11.3%, respectively. However, the mean annual rainfall and CV value during the whole analysis period (1986-2018) were 555.4 mm and 40.5%, respectively. Rangeland dynamics of the study area becomes a non-equilibrium system throughout the study period, since rainfall with greater than 33% of CV value during the analysis period was qualified as non-equilibrium dynamics ((Ellis et al 1993; Vetter 2004)).

In contrast, it becomes near-equilibrium dynamics when the drought years are excluded. In agreement with this finding Meshesha et al (2019) indicated that the near-equilibrium of rangeland was observed by excluding the drought years during the analysis period of 2000 to 2018. The management of the rangeland in the equilibrium dynamics should follow Clementsian succession theory Clements (1916) and should be utilized by keeping numbers of livestock below its carrying capacity while minimizing the number and increasing livestock productivity (Caughley 1979).

Figure 4. The relationships between carrying capacity and stocking rate throughout the study period (1986-2018)

The current stocking rate over the analysis period in this study showed consistently increasing beyond its carrying capacity. The stocking rate and carrying capacity of the rangeland during the analysis period showed a negative correlation (Figure 9). According to Engler et al (2018) and Vetter(2014), the high number of livestock in the rangeland was responsible for overgrazing, particularly in East African rangelands. Therefore, all pastoral development endeavor should be implemented by considering proper rangeland management schemes through maintaining carrying capacity of the rangeland with an appropriate number of high producing livestock species, destocking a colossal number of poor livestock producers, resettlements of nomadic pastoralists into villages and conversion of communal pasture area into private tenure scheme.

The trend analysis using Mann-kendall non-parametric test of significance showed increasing pattern (p<0.01) of mean annual temperature, cattle, goat and camel population in the time series data of the study area. In contrast, declining (p<0.01) trends of sheep population and decreasing patterns of annual rainfall was observed during the study period (Table 6). The declining trends in sheep population suggested that poor adaptive capacity to increasing temperature, reduction in the amount of rainfall and grassland productivity.

Majority (p < 0.01) respondents perceived decreasing patterns of feed availability (74.2%), feed quality (65.2%) and water availability (83.3%) (Table 7). The declining trends of feed and water resources may be associated with increasing patterns of temperature and decreasing trends of rainfall in the study area. The result of this finding has agreed with the report of Angassa and Oba (2007) who revealed that the amount of rainfall and distribution determine forage production. Camel and goat population and rising temperature could have a positive relationship that can be due to increased bush/shrub vegetation cover and browse forage species in the study area.

As shown in Table 8, the majority of respondents had perceived that decreasing trends of available feed resources (75.6%) and feed quality (64.6%) corresponding with increasing patterns of temperature. Pastoralist's and agro-pastoralist perceived decreasing (p < 0.01) patterns of feed availability (78.8%) and quality (66.4%) while the amount of rainfall is too little. This perception indicates that decreasing patterns (p<0.01) of feed availability and quality corresponds with the perceptions of increasing trends of temperature and too little amount of rainfall. This study suggested that decreasing rate of feed availability and quality had associated with increasing patterns of temperature and declining patterns of rainfall.

The respondents perceived that decreasing amount of rainfall, increasing patterns of temperature, encroachments of bush and poisonous plant species are the primary determinant factor of livestock feed quality and availability in the rangeland. The vegetation cover identified during discussion available with household heads includes an increasing level of the invasive bush, poisonous (Xanthium, Parthenium hysterophorus L and Prosopis hysterophorus) and thorny plant species (Acacia mellifera and Acacia Senegal). Household heads also stated decreasing trends of palatable grass and browse species such as elephant grass and Acacia brevispica. Decreasing feed availability and quality perception of the respondents might be due to increasing patterns of temperature and decreasing trends of rainfall parameters (Onset, duration and amounts of rainfall). This finding agreed with the report of Abebe et al (2012) who revealed increasing rate of poisonous, thorny and invasive bush and declining trends of grass plant species due to drought and erratic nature of rainfall in Borana rangeland. Ort and Ainsworth (2012) revealed that environmental changes are rapid to some plant species, and they become powerless to respond while some species may develop adaptive capacity with the extant genetic diversity in changing eco-environment. According to Rust and Rust (2013) and Warne et al (2010), most pasture and grass species (C3 plants) are more productive under cooler and moist eco-environment while C4 plant species are more productive under high temperature, low moisture and high solar radiation. Furthermore, Barker and Caradus (2001) reveal that C4 plant species are more desirable under global warming scenario for tropical and subtropical regions. However, the higher vegetative productivity of C4 plants under such increased temperature and solar radiation and decreased rainfall (moisture) are at the expense of feed quality and quantity (Valtorta 2002; USEPA 2016).

Figure 5. The association of temperature and rainfall with choosing livestock species

As shown in Figure 10, preferences of livestock species as farm animal by pastoral and agro-pastoral communities varied across temperature patterns and amount of rainfall. Camel is more likely chosen with increasing patterns of temperature and too little amount of rainfall. As indicated in Table 8, the perception of respondents regarding the adaptation of livestock species to low feed quality and availability have shown the camel (53.7%) is more likely adapted (p < 0.01) at increasing patterns of temperature followed by a goat (25.6%). Similarly, camel (52.5%) is more likely adapted to low-quality feed when the amount of rainfall is too little. This finding revealed that the camel and goat are the species that are well adapted to low-quality feed when the temperature is increasing, and the amount of rainfall is declined. Livestock species diversity is a means of livelihood resilience strategy of pastoral and agro-pastoral community that is mainly required to coping with changes in land use/cover, climate and feed resources (FAO 2015). According to Coppock (1994), Borana pastoralists of southern Ethiopian rangeland has shifting owned livestock species from grazer (cattle and sheep) to the browser (camel and goat) because of changing eco-environmental condition of the area. Giday et al (2018) also reported the browse species feed availability from forest and woody vegetation cover becoming an immense contributor to livestock feed resources in dryland pastoral regions.

Comparing with goat and cattle, the probability of choosing camel in increasing patterns of temperature was increased (p<0.05) (Table 9). Comparing with camel, goat and cattle was less likely selected while the temperature is increasing. Comparing with cattle, the probability of choosing sheep was increased by 129% in declining feed resource. In comparison with sheep, cattle and goat are less likely selected when available feed resource is decreased.

Comparing with camel, goat, and cattle was less likely (P≤ 0.05) adapted to increasing temperature and decreasing feed availability. Higher (p<0.01) camel adaptation potential (p<0.01) to increasing temperature and decreasing feed availability have associated with a lower likelihood of goat and camel. Comparing with cattle, the probability of choosing camel, goat and sheep was increased by 81, 75 and 59% when temperature pattern is increased, respectively (Table 9). When the temperature is increasing, the probability of choosing cattle and sheep is decreased by 75 and 15%, respectively. In comparison, the probability of choosing camel is increased by 6% as compared with a goat. In decreasing feed availability, the probability of choosing camel and sheep is increased by 5 and 9%, respectively, while goat is less likely selected comparing with cattle. This variation could be due to the region has a higher potential of browser forage species derived from bush/shrub, dry forest and woody vegetation cover that is edible for goat and camel. In agreement with this finding, Mendelsohn and Seo (2007) reported decreasing probability of choosing cattle while the probability of choosing goat become more likely ( p<0.01) as temperature increases. Livestock production and productivity are severely vulnerable, is being affected by climate change and variability in Africa (Rust and Rust 2013).

Conclusion

• This study revealed that southeastern Ethiopian rangelands are changed ( p<0.01) in the last four decades. The livestock feed availability and quality was affected (p<0.01) by land use/cover changes. As a result, the rangeland carrying capacity over the analysis period (1986-2018) was decreasing (p<0.01); associated with decreasing (p<0.01) rate of grassland and biomass productivity of forage plant species in the eco-environment of the study location. Furthermore, the stocking rate of the rangeland has increased; associated with increasing trends of cattle, camel, goat and decreasing patterns of rangeland biomass production.


• The transition of available feed type from grazing to browsing has not been able to meet the growing amounts of required feed in the study area. This change might be associated with the declining patterns of rainfall, rangeland increasing patterns of temperature, livestock population and stocking rate, deterioration of natural ecosystems and degradation of native forage species. With increasing temperature and decreasing pattern of rainfall, the probability of choosing camel and goat is more likely than cattle and sheep.


• This study also suggested that the need for knowledge-based land use scheme; improving early warning system for climate-related disaster risk management; improving livestock genetic makeup for effective utilization of available feed resources are essential to make the pastoral community resilient. Moreover, adopting climate-smart livestock production scheme; improving the quality and quantity of available livestock feed resources and raising a large number of browser livestock species such as camel and goat with increasing temperature and decreasing rainfall are recommended. It is also suggested that expanding the already existing silvopsatoral system would promote the development of renewable energy resources and give opportunities for pastoral communities to have an alternative energy sources. Furthermore, silvopastoral system in the study area is also helpful for the mitigation costs of climatic change, such as burning and destruction of grasslands, decline in milk production, death of livestock, and making corridors for persistence and movement of species. Finally, this study founded that the available feed resources and livestock species ownership vary with climate and land use/cover indicating the need for site-specific feed and rangeland management scheme.

Availability of data and materials

The authors declare that all data supporting the findings of this study are available within the article and its supplementary information files. However, the land use/cover change dataset analyzed during this study were derived from EarthExplorer domain of Landsat program ( https://earthexplorer.usgs.gov/).

Competing interests

No potential conflicts of interest to declare

Funding

This research was supported by the Africa center of excellence for Climate Smart Agriculture and Biodiversity Conservation, Haramaya University, in collaboration with World Bank Group.

Authors' contributions

Matiwos Habte designed the study and performed the experiment.Dr Abiyot Legesse and Dr Melesse Maryo made the analysis and wrote the manuscript. Dr Mitiku Eshetu and Dr Dereje Andualem devised the study, the main conceptual idea and proof the outline of the experiment. All authors discussed the results and contributed to the final manuscript.

Acknowledgement

We thank Mr Dereje Likisa for his assistance on spatial data analysis of some parameters of this research. We would also like to show our gratitude to Mr Liban Boru (Dilla University), Mr Mieso Kaweti (Haramya University, Climate Smart Agriculture PhD candidate), Mr Guye Aga (East Guji Zone livestock and fisheries office), Dr Wako Bonaya (Gumi Eldallo District Livestock health office) and Mr Kibru Alemu (Dilla University) for sharing their pearls of wisdom with us during fieldwork.
