Effect of self-nanoemulsifying drug delivery system (SNEDDS) of cinnamon bark essential oil on broiler chicken performance

Aji Praba Baskara, Bambang Ariyadi1, Nanung Danar Dono, Ronny Martien2 and Zuprizal Zuprizal

Department of Animal Nutrition and Feed Science, Faculty of Animal Science, Universitas Gadjah Mada, Yogyakarta, Indonesia 55821
1 Department of Animal Production, Faculty of Animal Science, Universitas Gadjah Mada, Yogyakarta, Indonesia 55821
2 Department of Pharmaceutics, Faculty of Pharmacy, Universitas Gadjah Mada, Yogyakarta, Indonesia 55821
zuprizal@ugm.ac.id

Abstract

The present study aimed to evaluate the self-nanoemulsifying drug delivery system of cinnamon bark essential oil on growth and feed conversion ratio of broiler chickens. One hundred sixty broiler chickens were divided into four treatment groups. Each group comprised of five replicated pens and each replication contained eight broiler chickens. The treatments were control group CB0 (drinking water only), CB0.2 group (drinking water added with 0.2 ml/L SNEDDS CBO), CB0.4 group (drinking water added with 0.4 ml/L SNEDDS CBO), and CB0.8 (drinking water added with 0.8 ml/L SNEDDS CBO).

All of the SNEDDS CBO treatment groups reduced the amount of feed intake compared to the control group. However, the effect of the treatments did not affect the final body weight, weight gain, and feed conversion ratio of broiler chickens. The SNEDDS CBO treatment groups showed a trend to reduce the value of the feed conversion ratio of broiler chickens. Inclusion of SNEDDS CBO through drinking water at 0.2 – 0.8 ml/L can be an antibiotics alternative in poultry production by improving the efficiency of feed nutrients utilization.

Keywords: cinnamon, essential oil, poultry, SNEDDS


Introduction

The risk of pathogenic bacteria in commercial poultry production makes antibiotics are given to prevent, control, and treat enteric diseases (Landoni and Albarellos 2015). In-feed antibiotics are widely used as feed additives in poultry production to improve the feed efficiency, increase the poultry growth, and improve the quality of the products (Yang et al 2009; Cheng et al 2014). However, alongside the beneficial perspectives, there are also risks concerning the development of antibiotic-resistant microbes (Yegani and Korver 2008). The excess use of antibiotics could cause the transmission of antibiotic-resistant bacteria and its resistant factors from animals to humans (Stanton 2013).

Essential oils are well known for their antimicrobial activities (Griggs and Jacob 2005; Jayasena and Jo 2013), including cinnamon (Cinnamomum burmannii) bark essential oil (CBO). There are several types of cinnamon in Indonesia. Research has shown that cinnamon has antibacterial activity against various bacteria (Rakshit and Ramalingam 2011; Ranasinghe et al 2013) that potential to be used as an alternative to the antibiotic. Essential oils are volatile and dissolved in lipid or organic solvents (Bakkali et al 2008). New approaches are necessary to increase the water solubility of essential oils for oral applications, e.g., via the drinking water to maximize the benefits of essential oil. One of the potential solutions is nanotechnology. The polymer dispersions using the emulsification-diffusion method can be used to make nanoparticle, such as nanoemulsion (Solans et al 2005). The lipid-based formulation is an alternative solution for delivering hydrophobic compounds (Yadav et al 2014), e.g., the self-nanoemulsifying drug delivery systems (SNEDDS). The present study aimed to evaluate the self-nanoemulsifying drug delivery system of cinnamon bark essential oil on growth and feed conversion ratio of broiler chickens.


Material and methods

SNEDDS formulation

The materials for SNEDDS formulation consisted of cinnamon bark (Cinnamomum burmannii) essential oil (CBO) (Lansida Group, Yogyakarta, Indonesia), Tween 80 (KAO Indonesia Chemical, Bekasi, Indonesia) as a surfactant, polyethylene glycol 400 or PEG 400 (idCHEM Co., Ltd., Kyunggi, South Korea) as co-surfactant and virgin coconut oil (VCO; Healthy Co, Yogyakarta, Indonesia) as a carrier oil. The SNEDDS formulation processes were based on Ujilestari et al (2019) with modification where the use of an ultrasonicator was eliminated to make a simple and cost-efficient method of formulation process yet produced a similar result. The SNEDDS CBO formulation consisted of: CBO (12.11%), VCO (4.04%), Tween 80 (69.56%), and PEG 400 (14.29%) (v/v).

Table 1. Composition and calculated nutrient content of the experimental diet (as-fed basis)

Composition

Proportion (%)

Maize

62.0

Meat bone meal

22.0

Soybean meal

12.0

Palm oil

2.00

Trace mineral and vitamin mix

0.06

NaCl

0.06

Limestone (CaCO3)

1.00

L-Lysine HCl

0.15

DL-Methionine

0.13

Di-Calcium Phosphate

0.60

Calculated nutrient content

Metabolizable Energy (kcal/kg)

3,022

Crude protein (%)

21.7

Fiber (%)

2.34

Fat (%)

5.85

Calcium

0.87

Available Phosphorus

0.47

1Provided mineral and vitamin per kg of the feed: 32.5% Ca, 1% P, 6 g Fe, Mn 4 g, 0.075 g I, 0.3 g Cu, 3.75 g Zn, 0.5 mg Vitamin B12, 50,000 IU Vitamin D3
Experimental design, birds, and diets

One hundred sixty one-day-old mixed-sex commercial broiler chickens (Lohmann W99, PT. Widodo Makmur Unggas, Indonesia) were put together into a brooder pen. During the first week, the temperature brooder pen was regulated to stay at 31 şC. In the second week or d 8, the broiler chickens were randomly divided into four treatment groups. Each group comprised of five replicated pens (n= 5) and each replication contained eight broiler chickens. Each pen was equipped with a feeder and a nipple drinker. The formulated diet was to meet or exceed the nutritional requirements of broiler chickens using NRC (1994) recommendation (Table 1). The treatments were given through drinking water. The treatment groups consisted of control group (drinking water only), CB0.2 group (drinking water added with 0.2 ml/L SNEDDS CBO), CB0.4 group (drinking water added with 0.4 ml/L SNEDDS CBO), and CB0.8 (drinking water added with 0.8 ml/L SNEDDS CBO). The diet and drinking water were provided ad libitum.

Broiler chicken performance measurement

The feed intake was calculated weekly by subtracting the amount of feed left from the total amount of feed given. The bodyweight of all chickens was measured at weekly intervals. Due to the treatments were given in the second week, the broiler chicken performance measurement was calculated from the second week until the fifth week (d 8-35). The body weight gain was calculated by subtracting the final body weight (d 35) to the first day of treatment (d 8). Subsequently, the feed conversion ratio (FCR) was calculated based on cumulative feed intake and weight gain in each pen.

Statistical analyses

All data were analyzed by one-way analysis of variance (ANOVA) using Windows IBM SPSS 19.0 (IBM Corporation, New York, USA) in a completely randomized design with a model containing four treatments and five pens as experimental units. Probability values of p<0.05 were assumed as a statistical significance, and the values of p< 0.10 were declared as a trend. The differences among the treatments mean were detected using Duncans' new multiple range test.


Results and Discussion

Table 2 shows that the effect of all CB0.2, CB0.4, and CB0.8 groups reduced the amount of feed intake compared to the control group. However, the effect of the treatments did not affect the final body weight, weight gain, and feed conversion ratio of broiler chickens.

Table 2. The effect of treatments on broiler chicken performance

Items

CB0

CB0.2

CB0.4

CB0.8

SEM

p

Feed intake, g

2,689a

2,474b

2,521b

2,496b

28.9

0.02

Body weight, g

1,946

1,903

1,916

1,896

17.5

0.79

Weight gain, g

1,740

1,704

1,714

1,701

17.8

0.89

FCR

1.55

1.45

1.47

1.47

0.01

0.07

a,b Mean values within a row without common superscript differ at p<0.05



Fig 1 Fig. 2 ajíp2gif

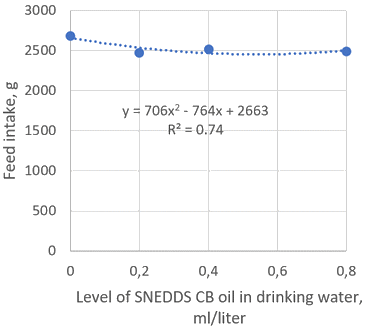

Figure 1. Response curve for feed intake according to the level of
SNEDDS Cinnamon bark (CB) oil in the drinking water
Figure 2. Response curve for feed conversion according to the level of
SNEDDS Cinnamon bark (CB) oil in the drinking water

The CB0.2, CB0.4, and CB0.8 treatments reduced the feed intake, but the effect was small (Figure 1). Previous studies also reported no differences in feed intake of broiler chickens after the dietary inclusion of cinnamon oil at 0.1 g/kg (Lee et al 2003) and 0.5–1 g/kg (Ciftci et al 2009). The strong aroma of cinnamon oil expected to cause the amount of feed intake in the SNEDDS CBO groups to be lower than the control group. The aroma can stimulate feed intake even though poultry has a lower sensitivity to the aroma compared to ruminant (Malayoğlu et al 2010). Furthermore, volatile compounds contained in cinnamon oil may affect chicken feed intake.

The treatments of adding SNEDDS CBO at such levels showed a trend to reduce the value of the feed conversion ratio of broiler chickens compare to the control group (Table 2; Figure 2). The higher feed conversion ratio values indicated that the control group was not effective in converting feed nutrients into bodyweight. Chowdhury et al (2018) reported a similar result that FCR value was lower in antibiotic and cinnamon oil groups compared to the control group. Increased efficiency of feed nutrients utilization may perform by the positive effects of essential oils on the digestive system, such as having antimicrobial effects, increasing the digestibility of protein, cellulose, and fat, which eventually affect the growth performance (Ertas et al 2005). Extracts from plants have bioactivity in the physiology and metabolism of livestock to increase the efficiency of feed utilization (Hernández et al 2004). Furthermore, feed conversion can vary due to differences in the substances contained in the plant-extracts used (Mmereole 2010).

Azevedo et al (2017) reported that the effect of essential oils on the growth performance would emerge when animals have poor hygiene conditions, high population density, and disease exposure. The SNEDDS CBO treatments did not affect growth performance; it was presumably due to the reasonably good maintenance conditions during the research. Several factors may affect the effectiveness of plant-extracts, such as dosage, the profile of bioactive substances, animal physiological conditions, feed, and environmental conditions (Alzawqari et al 2016).


Conclusions


Acknowledgements

The funding of this study is granted by the Ministry of Research, Technology, and Higher Education of the Republic of Indonesia (Master Program of Education Leading to Doctoral Degree for Excellent Graduates (PMDSU) Scholarship


References

Alzawqari M H, Al-Baddany A A, Al-Baadani H H, Alhidary I A, Khan R U, Aqil G M, and Abdurab A 2016 Effect of feeding dried sweet orange (Citrus sinensis) peel and lemongrass (Cymbopogon citratus) leaves on growth performance, carcass traits, serum metabolites and antioxidant status in broiler during the finisher phase. Environmental Science and Pollution Research, 23, 17077-17082. https://dx.doi.org/10.1007/s11356-016-6879-7

Azevedo I L, Martins E R, Almeida A C, Nogueira W C L, Filho D E F, Santos V K R, and Lara L J C 2017 Use of Lippia rotundifolia and Cymbopogon flexuosus essential oils, individually or combination, in broiler diets. Revista Brasileira de Zootecnia, 46, 13-19. https://doi.org/10.1590/s1806-92902017000100003

Bakkali F, Averbeck S, Averbeck D, and Idaomar M 2008 Biological effects of essential oils-a review. Food and Chemical Toxicology, 46, 446–75. https://doi.org/10.1016/j.fct.2007.09.106

Cheng G, Hao H, Xie S, Wang X, Dai M, Huang L, and Yuan Z 2014 Antibiotic alternatives: the substitution of antibiotics in animal husbandry? Frontiers in Microbiology, 5, 217. https://dx.doi.org/10.3389%2Ffmicb.2014.00217

Chowdhury S, Mandal G P, and Patra A K 2018 Different essential oils in diets of chickens: 1. Growth performance, nutrient utilisation, nitrogen excretion, carcass traits and chemical composition of meat. Animal Feed Science and Technology, 236, 86–97. https://doi.org/10.1016/j.anifeedsci.2017.12.002

Ciftci M, Dalkilic B, Cerci I H, Guler T, Ertas O N, and Arslan O 2009 Influence of dietary cinnamon oil supplementation on performance and carcass characteristics in broilers. Journal of Applied Animal Research, 36, 125–128. https://doi.org/10.1080/09712119.2009.9707045

Ertas O N, Güler T, Ҫiftҫi M, Dalkılıc B, and Simsek Ü G 2005 The effect of an essential oil mix derived from oregano, clove and anise on broiler performance. International Journal of Poultry Science, 4, 879-884. http://dx.doi.org/10.3923/ijps.2005.879.884

Griggs J P and Jacob J P 2005 Alternatives to Antibiotics for Organic Poultry Production. Journal of Applied Poultry Research, 14,750–6. https://doi.org/10.1093/japr/14.4.750

Hernández F, Madrid J, Garcia V, Orengo J, and Megías M D 2004 Influence of two plant extracts on broiler performance, digestibility, and digestive organ size. Poultry Science, 83, 169-174. https://doi.org/10.1093/ps/83.2.169

Jayasena D D and Jo C 2013 Essential oils as potential antimicrobial agents in meat and meat products: A review. Trends in Food Science and Technology 34, 96–108. https://doi.org/10.1016/j.tifs.2013.09.002

Landoni M F and Albarellos G 2015 The use of antimicrobial agents in broiler chickens. The Veterinary Journal, 205, 21–7. https://doi.org/10.1016/j.tvjl.2015.04.016

Lee K W, Everts H, Kappert, H J, Frehner M, Losa R, and Beynen A C 2003 Effects of dietary essential oil components on growth performance, digestive enzymes and lipid metabolism in female broiler chickens. British Poultry Science, 44, 450–457. https://doi.org/10.1080/0007166031000085508

Malayoğlu H B, Baysal Ş, Misirlioğglu Z, Polat M, Yilmaz H, and Turan N 2010 Effects of oregano essential oil with or without feed enzymes on growth performance, digestive enzyme, nutrient digestibility, lipid metabolism and immune response of broilers fed on wheat-soybean meal diets. British Poultry Science, 51, 67-80. https://doi.org/10.1080/00071660903573702

Mmereole F U C 2010 Effects of lemongrass (Cymbopogon citratus) leaf meal feed supplement on growth performance of broiler chicks. International Journal of Poultry Science, 9, 1107-1111. http://dx.doi.org/10.3923/ijps.2010.1107.1111

NRC 1994 Nutrient Requirements of Poultry. 9th rev. ed. Natl Acad. Press, Washington, DC.

Rakshit M and Ramalingam C 2011 In-vitro antibacterial and antioxidant activity of Cinnamomum verum (cinnamon) aqueous bark extract in reference to its total phenol content as natural preservative to food. International Journal of Biology and Biotechnology, 8, 529–37. ISSN: 1810-2719

Ranasinghe P, Pigera S, Premakumara G A S, Galappaththy P, Constantine G R, and Katulanda P 2013 Medicinal properties of “true” cinnamon (Cinnamomum zeylanicum): a systematic review. BMC Complementary Medicine and Therapies, 13, 275. https://dx.doi.org/10.1186%2F1472-6882-13-275

Solans C, Izquierdo P, Nolla J, Azemar N, and Garcia-Celma M 2005 Nano-emulsions. Current Opinion in Colloid and Interface Science, 10, 102–10. https://doi.org/10.1016/j.cocis.2005.06.004

Stanton T B 2013 A call for antibiotic alternatives research. Trends in Microbiology, 21, 111–3. https://doi.org/10.1016/j.tim.2012.11.002

Ujilestari T, Ariyadi B, Martien R, Zuprizal, and Dono N D 2019 Optimization of self-nanoemulsifying drug delivery systems of lemongrass (Cymbopogon citratus) essential oil International Journal of Applied Pharmaceutics, 11, 144-149 http://dx.doi.org/10.22159/ijap.2019v11i1.30099

Yadav P S, Yadav E, Verma A, and Amin S 2014 Development, Characterization, and Pharmacodynamic Evaluation of Hydrochlorothiazide Loaded Self-Nanoemulsifying Drug Delivery Systems. The Scientific World Journal, 2014, 1–10. https://doi.org/10.1155/2014/274823

Yang Y, Iji P A, and Choct M 2009 Dietary modulation of gut microflora in broiler chickens: a review of the role of six kinds of alternatives to in-feed antibiotics. World's Poultry Science Journal, 65, 97–114. https://doi.org/10.1017/S0043933909000087

Yegani M and Korver D R 2008 Factors affecting intestinal health in poultry. Poultry Science, 87, 2052–63. https://doi.org/10.3382/ps.2008-00091


Received 25 March 2020; Accepted 29 April 2020; Published 1 June 2020
