Taro (Colocacia esculenta) silage and water spinach as supplements to rice bran for growing pigs

Nguyen Tuyet Giang and T R Preston

An Giang University (AGU)
Angiang Province, Vietnam
ntgiang@agu.edu.vn

Abstract

Three crossbred pigs (mean initial weight: 12.3 kg) were allocated to 3 treatments according to a 3*3 Latin Square design. The treatments were three supplements to a basal diet of rice bran:  water spinach (Ipomonea aquatica) only (WS), Taro (Colocasia esculenta ) silage only (TS) and mixture of water spinach and Taro silage (WS-TS). The trial was conducted in the experimental area of Kampong Cham National School of Agriculture in Kampong Cham province, Cambodia. The duration of the experiment was 42 days, from August 04 to September 16, 2008.

There were no differences in intake and apparent digestibility of DM and crude protein among the three treatments.  When only the diets containing water spinach  (diets WS and WS-TS only) were considered, there were significant relationships between  N retention and N retention as % of digested N and daily intake of water spinach.  By contrast, there were no relationships between taro silage intake and the retention of N for diets WS-TS and TS.  The implication from these contrasting results is that the biological value of the water spinach protein may be higher than that of the protein in the ensiled taro leaves and stems.

Overall, it can be concluded that Taro silage mixed with water spinach is a good source of protein for feeding to growing pigs as the apparent digestibility of crude protein (>80%) and the N retention as percentage of N digested (70.5%) were high on the mixed diets.

Key words: Digestibility, diuretic effect, Latin Square design, nitrogen utilization


Introduction

Livestock production makes an important contribution to global food supply. We also have to cope with the considerable and increasing demand of finding new feed sources for animals. Many recent researches have been conducted with the purpose of utilizing the local feed resources and by-products of agriculture.

Water spinach (Ipomonea aquatica) can grow easily not only in soil but also in water (pond or river). It is planted traditionally for human consumption in South East Asia and appears to be devoid of non-nutritional elements (Chittavong Malavanh 2006). Within a growth period of only 30 days from the time of planting the seed, the yield of water spinach was up to 24 tones of fresh biomass/ha (Kean Sophea and Preston 2001). The fresh biomass contained 10% dry matter (DM) with a crude protein (CP) content of 22% in DM. Other studies with water spinach also indicated that the fresh stems and leaves have CP in range from 20 to 31% in DM, with ash around 31% of DM (Le Thi Men et al 2000; Bui Huy Nhu Phuc 2000; Prak Kea 2003; Chhay Ty and Preston 2005). According to one report (Le Thi Men 2000), chopped water spinach can replace 30% of the DM in feeds for gestating sows and 15% of the diet of lactating sows with improved reproductive performance and welfare.

In many tropical countries, Taro (Colocasia esculenta) is known as a wet-land plant which is cultivated mainly for corm production. In the Southern part of Vietnam, although Taro is commonly grown, farmers normally harvest only the corm, the rest of this plant (leaves and stems) are not used.  In Cambodia, Taro is considered to be a good vegetable crop and is planted near the houses in the late dry season and early rainy season, between April and July. The tubers are used for human consumption while stems and leaves are not widely used for animal feeding. The main reasons for not using them are the itching they cause, and lack of technology. The average tuber yield is 4.5-6 tonnes ha-1, while the average yield of petiole and leaf is 5-8.5 tones ha-1 (Pheng Buntha et al 2008).

Some studies report the nutritive value of Taro and that the plants can be used for feeding animals (Pheng Buntha 2006; Chhay Ty 2007; Chittavong Malavanh 2006; Du Thanh Hang and Preston 2008). Calcium oxalate, a substance present as crystals in all parts of this plant, have an effect on the digestive tract by irritating the throat and mouth epithelium (Miller 1929). According to Du Thanh Hang and Preston (2008).  the farmers in Central Vietnam use the taro leaves for pigs by cooking them with rice or rice bran and cassava roots, in order to reduce the concentrate of calcium oxalate. These authors showed that ensiling was equally effective in reducing the calcium oxalate and that there were no differences in crude protein digestibility and N retention between diets with cooked and ensiled taro leaves.

This study was carried out to test the hypothesis that apparent digestibility of DM and CP, and the N retention, would be improved when Taro silage replaced part of the water spinach, as the protein source for growing pigs fed a basal diet of rice bran.


Material and methods

Location and duration

The experiment was conducted in the experimental area of Kampong Cham National School of Agriculture in Kampong Cham province, about 129km from Phnom Penh. Kampong Cham has a tropical climate with an annual monsoon season from May to November. The monsoon is heaviest in late July and August. The climate is most pleasant during the dry season which is from November to April. The annual temperature is around 25oC with maximum temperature known to reach 32oC; minimum temperatures rarely fall below 10°C.

The experiment was carried out from 4th August to 16th September 2008.

Experimental design

This was as a 3 x 3 Latin Square arrangement (Table 1) with 3 pigs and 3 periods, each of 7 days. The treatments were supplements to the basal diet of rice bran (Photos 1-4) as follows:


Table 1. Layout of the treatments

Period

Pig 1

Pig 2

Pig 3

1

WS

TS

WS-TS

2

WS-TS

WS

TS

3

TS

WS-TS

WS


Animals and housing

Three crossbred castrated male pigs, with initial live weights of 10.0 ± 2.5 kg, were kept in metabolism cages (0.66cm x 0.63cm x 0.60cm) made of wood and designed to collect faeces and urine separately.

Feeds and feeding

Taro leaves and stems (Photo 1) were harvested from ponds, dried for 24 hours then chopped and ensiled with no additive (Photo 2) as there are soluble sugars in the  petioles of the taro. This procedure has been shown to reduce the content of calcium oxalate (Pheng Buntha 2007). The ensiled taro was stored in plastic bags for 30 days before being used. Water spinach was bought from the farmers and chopped into small pieces (3-5cm). Rice bran was purchased from Kampong Cham market.



Photo 1. Taro (Colocasia esculenta) plant

Photo 2. Taro silage

The feed components (Table 2) were offered separately with the overall level equivalent to 4% of the live weight (DM basis). The quantities of feeds offered were slightly adjusted to minimize residues. Water was supplied through nipple drinkers.


Table 2. Planned composition of the diets (% DM basis)

Ingredients

WS

TS

WS-TS

Rice bran

65

65

65

Water spinach

34.5

0

17.5

Taro silage

0

34.5

17

Mineral

0.5

0.5

0.5

Total

100

100

100


Measurements and data collection

Feeds offered and residues, faeces and urine were recorded daily during the last 5 days of each period. Urine was collected in a plastic bucket to which sulphuric acid was added to maintain the pH below 4.0 (10ml of a solution of 10% concentrated sulphuric acid). The volume of urine was measured every day and 10% of the total volume stored until the end of each period, when it was analyzed for nitrogen (N). The pigs were weighed in the morning before feeding at the beginning and the end of each period. Feed samples, residues and faeces were analyzed for DM and CP after every period.

Chemical analysis

Feed and faecal samples were dried by microwave radiation to measure the DM content (Undersander et al 1993). Total nitrogen (N) and the organic matter (OM) of samples (feed, faeces and urine) were analysed according to the AOAC (1990) recommendations.

Statistical analysis

The data were analyzed by the General Linear Model option in the ANOVA software of MINITAB (release 13.31) (Minitab 2003).

The sources of variation in the model were treatments, pigs, periods and error.


Results and discussion

Feed composition and intake

The contents of crude protein were similar for the ensiled taro and the water spinach (Table 3).  The very low level of crude protein in the rice probably indicated some adulteration with a low-protein meal such as cassava root meal.


Table 3.  Chemical characteristics of the diet ingredients



Taro silage

Water spinach

Rice bran

DM, %

29.4

10.5

90.0

As % in DM



Organic matter

78.32

88.9

84.5

Crude protein

18.7

18.8

4.06


There were no differences in intakes of rice bran and the total diet (Table 4). The foliages supplied more than 60% of the dietary crude protein (Figure 1) but only about 30% of the DM intake (Figure 2).


Table 4. Mean values for DM intake, organic matter (OM) and nitrogen intake of pigs fed basal diets of broken rice supplemented of water spinach (WS), Taro silage (TS) and mixture of water spinach -Taro silage (WS-TS)



TS

WS

WS-TS

SEM

Prob.

DM intake, g/day









Rice bran

435

428

446

33.0

0.929

Water spinach

0.0

186

127





Taro silage

143

0.0

97.0





Total

578

614

670

50.7

0.423

OM intake, g/day









Rice bran

368

362

377

27.8

0.929

Water spinach

0.0

166

112





Taro silage

111

0.0

75.5





Total

479

529

565

42.8

0.353

Nitrogen intake, g/day







Rice bran

2.8

2.8

2.9

0.2

0.930

Water spinach

0.0

5.7

3.8





Taro silage

4.4

0.0

2.7





Total

7.3

8.5

9.4

0.8

0.165



Figure 1. Dietary ingredients as a proportion of the intake of crude protein  in pigs
fed supplements of water spinach and taro silage with a basal diet of rice bran

Figure 2. Dietary ingredients as a proportion of the DM intake in pigs fed
supplements of water spinach and taro silage with a basal diet of rice bran


The proportion of diet N derived from the foliages was higher when water spinach was included in the diets;  however, total N intake did not differ among diets (Table 5).


Table 5. Mean values for intake of foliage and total DM of pigs fed supplements of water spinach and taro silage with a basal diet of rice bran



TS

WS

WS-TS

SEM

Prob.

N intake, g/day


  Foliages

4.42

5.72

6.46

0.603

0.058

  Total

7.25

8.51

9.36

0.791

0.165

N in foliage as % of total N

56.5a

65.7b

69.0b

2.47

0.002

ab Means with different letters within the same row are different at P<0.05

Apparent digestibility coefficients

There were no differences in apparent digestibility of DM, OM and crude protein among the diets (Table 6).


Table 6.  Coefficients of apparent digestibility of pigs fed  by three experimental diets



TS

WS

WS-TS

SEM

Prob.

Dry matter

55.14

55.07

64.64

3.40

0.081

Organic matter

58.96

59.25

64.91

3.09

0.308

Crude protein

84.33

83.81

80.18

2.45

0.423

Nitrogen utilization

Daily N retention and N retention as a percentage of the N intake and N digested did not differ among the diets (Table 7; Figures 7 and 8).  However, when only the diets containing water spinach  (diets WS and WS-TS only) were considered, there were significant relationships between  N retention and N retention as % of digested N and daily intake of water spinach (Figures 9 and 11). By contrast, there were no relationships between taro silage intake and the retention of N for diets WS-TS and TS (Figures 10 and 12). The implication from these contrasting results is that the biological value of the water spinach protein is higher than that of the protein in the ensiled taro leaves and stems.


Table 7. N retention by pigs fed ensiled or dried Taro leaves with basal diets of rice bran/broken rice or rice bran/cassava root meal

Nitrogen utilization, g/day

TS

WS

WS-TS

SEM

Prob.

Intake

7.3

8.5

9.4

0.8

0.165

Faeces

1.1

1.5

1.9

0.3

0.101

Urine

1.7a

1.4a

2.2b

0.2

0.030

Nitrogen retention









N retention

4.4

5.6

5.3

0.6

0.454

% of N digested

68.7

73.5

70.5

4.1

0.712

% of total N intake

58.2

61.1

57.0

3.8

0.741

ab Means with different letters within the same row are different at P<0.05


Figure 7.   N retained as % of N intake in pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran

Figure 8. N retained as % of N digested in pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran


Figure 9  Relationship between intake of water spinach (diets WS-TS
and WS only) and
N retained in pigs fed supplements of water
spinach and taro silage with a basal diet of rice bran
Figure 10.  Relationship between intake of taro silage (diets WS-TS
and TS only) and
N retained in pigs fed supplements of water
spinach and taro silage with a basal diet of rice bran

Figure 11.  Relationship between intake of water spinach (diets WS-TS
and WS only) and
N retained  as % of N digested in pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran
Figure 12.  Relationship between intake of taro silage (diets WS-TS
and TS only) and
N retained as % of N digested in pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran

Diuretic effect of water spinach

It was observed that the urine volume was greater on the diets that contained water spinach (Figures 13 and 14) and also the colour was different (Photo 3). The different volume and colors of urine observed in this research may  be explained by the diuretic effect of water spinach. Chittavong Malavanh and Preston (2006) reported that urine volume in pigs increased when water spinach replaced sweet potato leaves in  a basal diet of rice bran and cassava root meal. A similar result was observed in an experiment by Phiny et al (2008), in which urine volume increased when water spinach replaced mulberry leaves in pig diets. In the experiments of Chittavong Malavanh and Preston (2006) and Phiny et al (2008), the increased urine volumes were associated with increased excretion of N; however, this was not the case in the present experiment (Table 7). It appears that water spinach may have a negative on nitrogen utilization when it exceeds 25 to 30% in the diet DM. Thus, when it was fed at 50% of the diet (Chhay  Ty et al 2005) the increased urine volumes were combined with increased excretion of N and lower retention of N as % of digested N.


Figure 13. Mean values of urine excreted in pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran

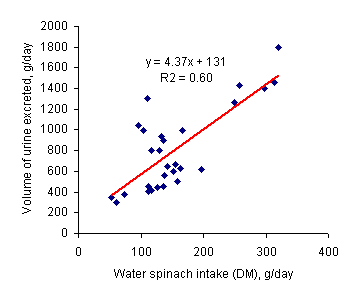

Figure 14.  The relationship between intake of  water spinach (diets WS-TS and
WS only)  and the volume of urine excreted every day in
pigs fed supplements
of water spinach and taro silage with a basal diet of rice bran



Photo 3.  Three plastic containers of individual treatments showing different colors of urine

Conclusions


Acknowledgements

The author would like to thank the MEKARN program, financed by Sida/SAREC for supporting this project.  We are very grateful to doctor Do Van Xe, Mr Chhay Ty and Ms Latsamy for all their great help and support during the experiment. Thanks are given to the staff, students of Kampong Cham National School of Agriculture for helping to carry out this research.


References

AOAC 1990 Official methods of analysis. Association of Official Analytical Chemists, Arlington, Virginia, 15th edition, 1298 pp.

Bui Huy Nhu Phuc, R B Ogle, J E Lindberg and T R Preston 1996 The nutritive value of sun-dried and ensiled cassava leaves for growing pigs. Livestock Research for Rural Development. Vol. 8, No. 8.

Buntha P, Borin K, Preston T R and Ogle B 2008a Effect of Taro (Colocasia esculenta) leaf silage as replacement for fish meal on feed intake and growth performance of crossbred pigs.  Livestock Research for Rural Development. Volume 20, Article #5. http://www.cipav.org.co/lrrd/lrrd20/supplement/bunt3.htm

Buntha P, Borin K, Preston T R and Ogle B 2008b Survey of taro varieties and their use in selected areas of Cambodia.  Livestock Research for Rural Development. Volume 20, supplement.  http://www.cipav.org.co/lrrd/lrrd20/supplement/bunt1.htm

Chhay Ty and Preston T R 2005a  Effect of water spinach and fresh cassava leaves on growth performance of pigs fed a basal diet of broken rice. Livestock Research for Rural Development. Volume 17, Article No. 76. http://www.cipav.org.co/lrrd/lrrd17/7/chha17076.htm

Chhay Ty and Preston T R 2005b Effect of water spinach and fresh cassava leaves on growth performance of pigs fed a basal diet of broken rice. http://pigtrop. Cirad.fr/en/scientific/alim_LRRD03005_1.htm

Chhay Ty and Preston T R 2005c Effect of water spinach and fresh cassava leaves on intake, digestibility and N retention in growing pigs. Livestock Research for Rural Development. Vol. 17, Art. No. 23. http://www.cipav.org.co/lrrd/lrrd17/2/chha17023.htm

Chhay Ty and PrestonT R 2006 Effect of different ratios of water spinach and fresh cassava leaves on growth of pigs fed basal diets of broken rice or mixture of rice bran and cassava root meal. http://www.cipav.org.co/lrrd/lrrd18/4/chha18057.htm

Kean Sophea and Preston T R 2001 Comparison of biodigester effluent and urea as fertilizer for water spinachvegetable. Livestock Research for Rural Development 13 (6) http://www.cipav.org.co/lrrd/lrrd13/6/pich136.htm

Le Thi Men, Ogle B and Vo Van Son 2000 Evaluation of water spinach as a protein source for Baxuyen and Large White sows. Workshop-Seminar on Making Better Use of Local Feed Resources. SAREC-UAF, January 2000. http://www.mekarn.org/sarpro/lemen.htm

Malavanh C, Preston T R and Ogle B 2008  Effect of replacing soybean meal by a mixture of taro leaf silage and water spinach on reproduction and piglet performance in Mong Cai gilts.  Livestock Research for Rural Development. Volume 20, Article #16. http://www.cipav.org.co/lrrd/lrrd20/supplement/mala2.htm

Pheng Buntha, Khieu Borin, T R Preston and B Ogle 2006 Digestibility and nitrogen balance studies in pigs fed diets with ensiled taro (Colocasia esculenta) leaves as replacement for fish meal. Livestock Research for Rural Development. Volume 20, Article # 4. http://www.cipav.org.co/lrrd/lrrd19/9/chha19137.htm

Phiny C, Ogle B, Preston T R and Borin K 2008 Digestibility and N-retention in crossbred pigs of diets with water spinach or water spinach mixed with mulberry leaves as protein sources in basal diets of cassava root meal plus rice bran, or sugar palm syrup plus broken rice.  Livestock Research for Rural Development. Volume 20, supplement.   http://www.cipav.org.co/lrrd/lrrd20/supplement/phin1.htm

Prak Kea, Preston T R and Ly J 2003  Feed intake, digestibility and N retention of a diet of water spinach supplemented with palm oil and / or broken rice and dried fish for growing pigs. Livestock Research for Rural Development 15 (8). http://www.cipav.org.co/lrrd/lrrd15/8/kea158.htm

Undersander D, Mertens D R and Theix N 1993 Forage analysis procedures. National Forage Testing Association. Omaha pp 154



Received 12 November 2010; Accepted 1 January 2011; Published 6 March 2011
